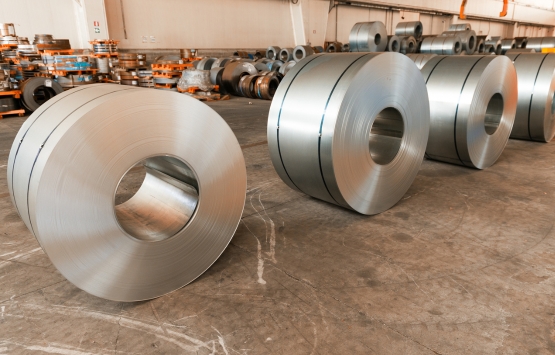

CRGO (Cold Rolled Grain Oriented Steel)
CRGO Steel is a high-performance material used in transformer cores due to its superior magnetic properties and low core loss. It is widely used in power transformers to ensure optimal efficiency and minimal energy wastage.

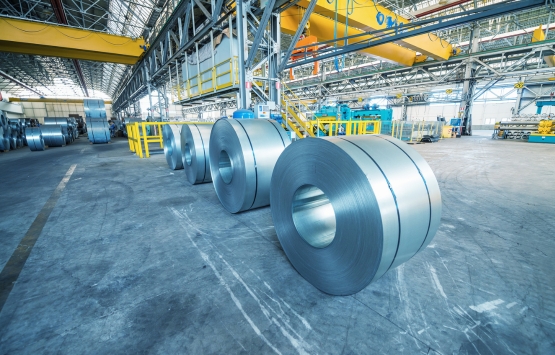

Technical Details of CRGO
CRGO or Cold Rolled Grain Oriented Steel is available in various grades (generally called M3, M4, M5 & M6). Major international standards such as Japanese (JIS), American (ASTM), German (DIN), and British Standards specify CRGO grades.
Grades of CRGO Steel
The early grades of steel were known as M7 (0.7 watts/lb at 1.5T/60Hz) and M6 (0.6 watts/lb at 1.5T/60Hz). Similarly, M5, M4, and M3 grades were developed in the late sixties. A new material called Hi-B has a remarkable degree of orientation and is 2 - 3 grades better than conventional CRGO steel products.
AKS suggests high-quality, low-hysteresis Cold-Rolled Grain-Oriented Steel Sheet (CRGO) transformer laminations complying with the IEC 60404 standard.
Superior Magnetic Properties
Reduced Core Loss
High Durability
Environmentally Friendly
Our CRGO Steel is designed for use in power transformer cores and other high-efficiency applications. Below are the key technical specifications and features:
| Specification | Details |
|---|---|
| Grades | M4, M5, MOH, ZDKH |
| Thickness | 0.20–0.30 mm |
| Magnetic Flux Density | Up to 1.9 Tesla |
| Core Loss | Low, as per IEC 60404-8 |
| Applications | Power transformers, distribution transformers, and electrical devices |
Innovation for Maximum Efficiency
At AKS International, we integrate the latest technologies to ensure our CRGO Steel provides the best performance for transformer cores and other electrical devices. Our focus is on achieving the highest levels of efficiency, durability, and safety.
