Copper PICC (Paper Insulated Copper Conductor)

Copper PICC
AKS International FZC

Copper PICC (Paper Insulated Copper Conductor)

Our Copper PICC provides excellent electrical conductivity and insulation, making it ideal for transformer windings and high-voltage electrical applications.

Copper PICC (Paper Insulated Copper Conductor) is designed for use in high-voltage transformer windings and other demanding electrical applications. It combines the superior conductivity of copper with reliable insulation, ensuring safe and efficient performance in transformers and other high-power electrical devices.

Why Choose AKS Copper PICC

AKS International offers Copper PICC that is manufactured with high-quality copper and insulation materials. This product is engineered to provide long-term reliability, high voltage withstand capacity, and minimal energy loss, making it perfect for power transformers and other high-voltage applications.

High Conductivity

Copper PICC ensures excellent electrical conductivity, reducing energy loss and improving transformer efficiency.

Reliable Insulation

The paper insulation provides excellent dielectric properties, ensuring safe and reliable operation even in high-voltage environments.

High Voltage Withstand

Copper PICC is designed to handle high-voltage applications, making it suitable for transformers and other electrical systems that require reliable performance under extreme conditions.

Thermal Stability

The copper conductor with paper insulation ensures stable performance at elevated temperatures, making it suitable for high-power transformers.

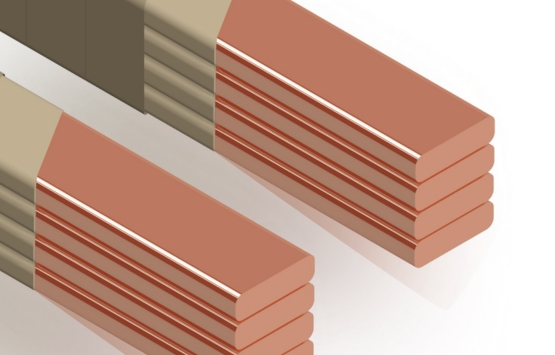

Copper PICC Technical Specs

Our Copper PICC is available in various specifications, ensuring optimal performance for a wide range of electrical applications. Below are the key technical specifications and features:

Specification Details
Conductor Standards IEC, IS, DIN, BS
Width 5 mm to 20 mm
Thickness 0.8 mm to 9 mm
Periphery of Rectangular Conductor 50 mm max
Conductor Width to Thickness Ratio 10:1
Insulation Thickness 0.3 mm to 6 mm
Insulation Types Kraft Paper, Thermally Stabilised Paper, Diamond Dotted Epoxy Paper, NomexTM, Polyester, Mica
Type of Lapping Butt Lapped, 30-50% Overlapped, Interlocked (in various combinations of paper and tape widths)
Applications Transformer windings, power cables, electrical devices

Ensuring Long-Term Reliability

At AKS International, we prioritize performance, safety, and durability. Our Copper PICC is crafted to meet global standards, ensuring long-term reliability and minimal maintenance for high-power electrical applications.
