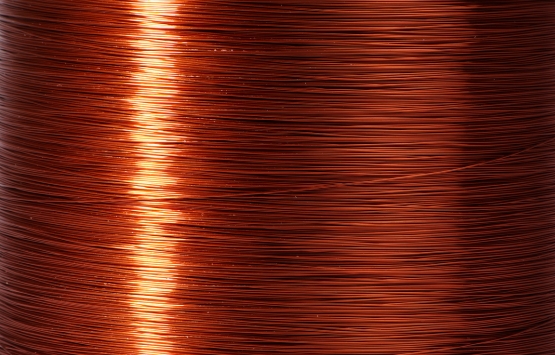

Super Enameled Copper
Super Enameled Copper is a high-performance material used in the production of winding wires for transformers, motors, and other electrical devices. It combines excellent electrical conductivity with high-quality enamel insulation, which ensures safe and reliable operation even under extreme conditions.
Why Choose AKS Super Enameled Copper
At AKS International, our Super Enameled Copper is manufactured to global standards, providing enhanced performance for electrical applications that demand high efficiency, low power loss, and optimal insulation. Our product is widely used in the production of transformers, motors, and other electrical windings, ensuring high efficiency and long service life.
High Conductivity
Enhanced Insulation
Thermal Stability
Corrosion Resistance
Our Super Enameled Copper comes in various specifications, ensuring optimal performance for a wide range of electrical applications. Below are the key technical specifications and features:
Wire Specifications
| Types | Modified Polyester 130°C | Modified Polyester 155°C | Polysterimide 180°C | Dual Coated Wire PE/PEI + PAI 200°C |
|---|---|---|---|---|
| Range - Copper | 0.06 to 5.0 mm | 0.06 to 3.0 mm | 0.06 to 5.0 mm | 0.06 to 4.0 mm |
| Range - Aluminium | 0.25 to 5.0 mm | 0.25 to 5.0 mm | 0.25 to 5.0 mm | 0.25 to 5.0 mm |
| Specifications - Copper | IS 13730-34 IEC 60317-34 IS 13730-9 IEC 60317-9 |
IS 13730-3 IEC 60317-3 |
IS 13730-8 IEC 60317-8 IS 13730-15 IEC 60317-15 |
IS 13730 -13 IEC 60317 – 13 NEMA MW 35A/35C IEC 60317 – 25 |
| Specifications - Aluminium | for 1.00 mm wire | for 1.00 mm wire | for 1.00 mm wire | for Aluminium |
Ensuring Maximum Performance
At AKS International, we focus on innovation and quality to ensure that our Super Enameled Copper provides the highest performance in the most demanding applications. Our commitment to excellence ensures that our products meet the highest industry standards and deliver reliable, long-term operation.
